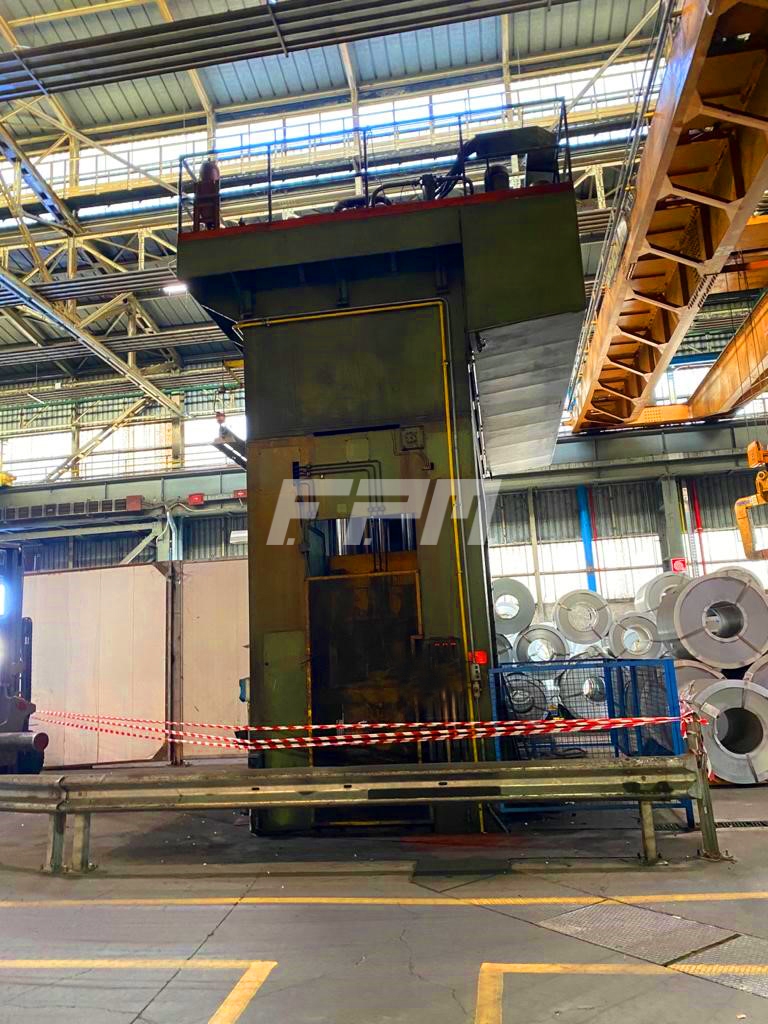

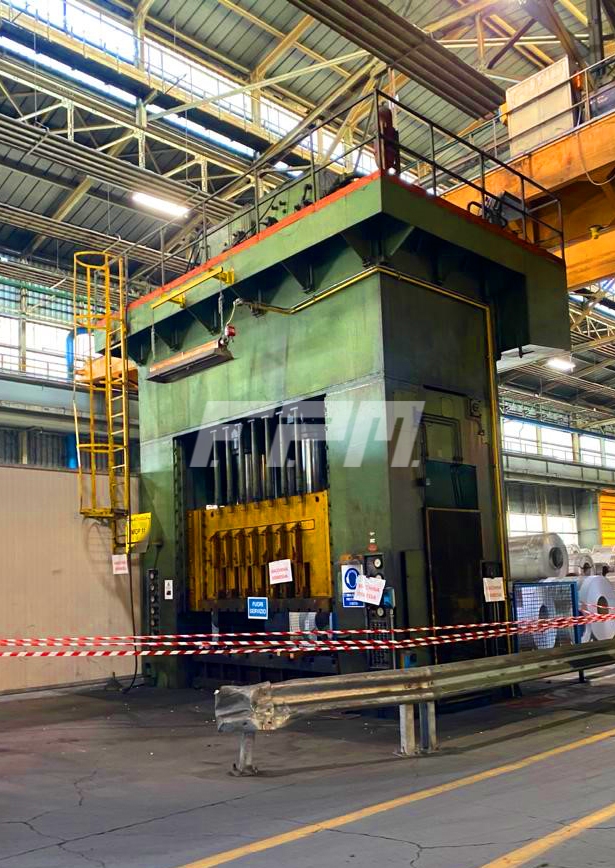

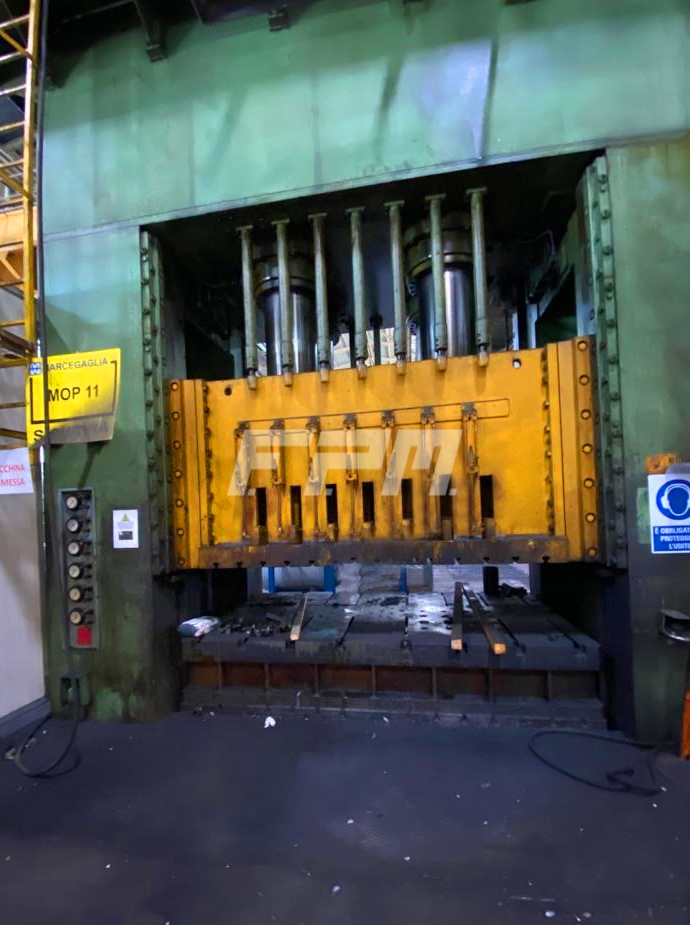

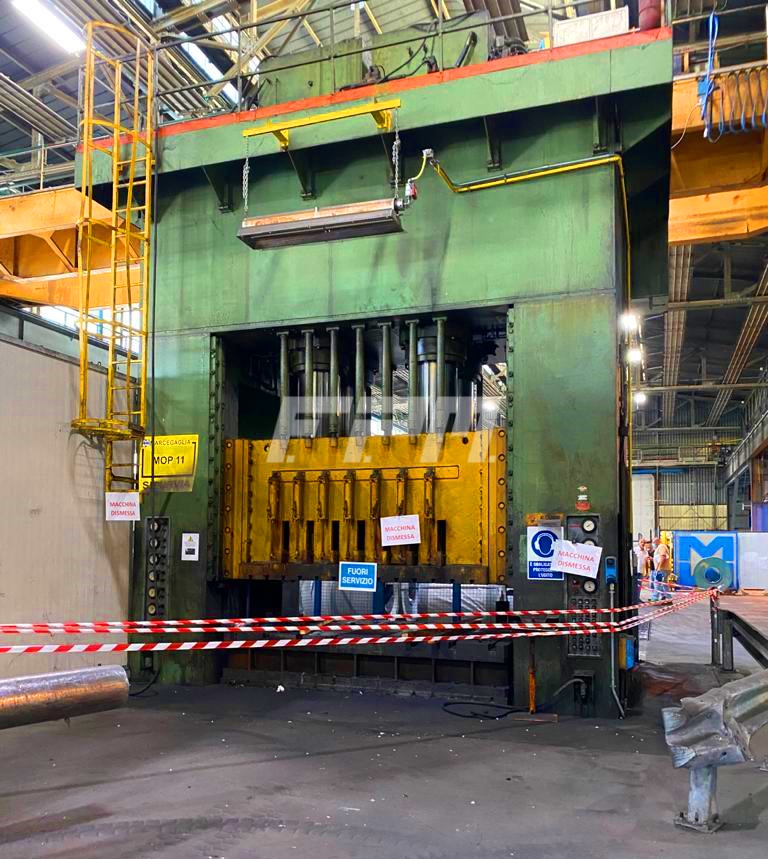

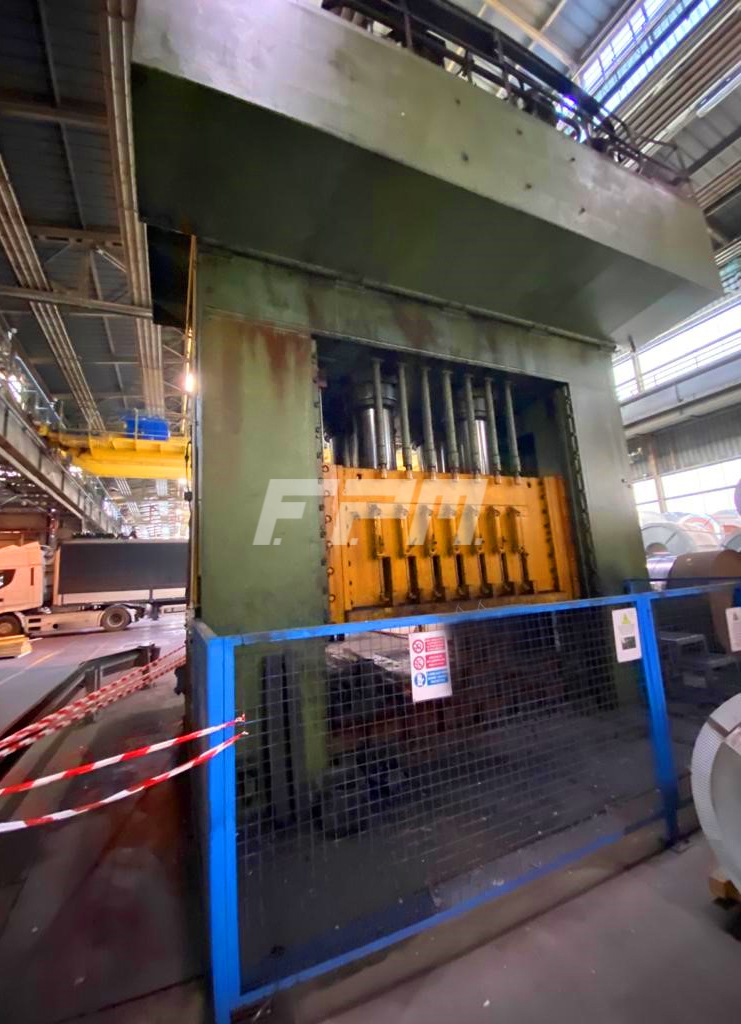

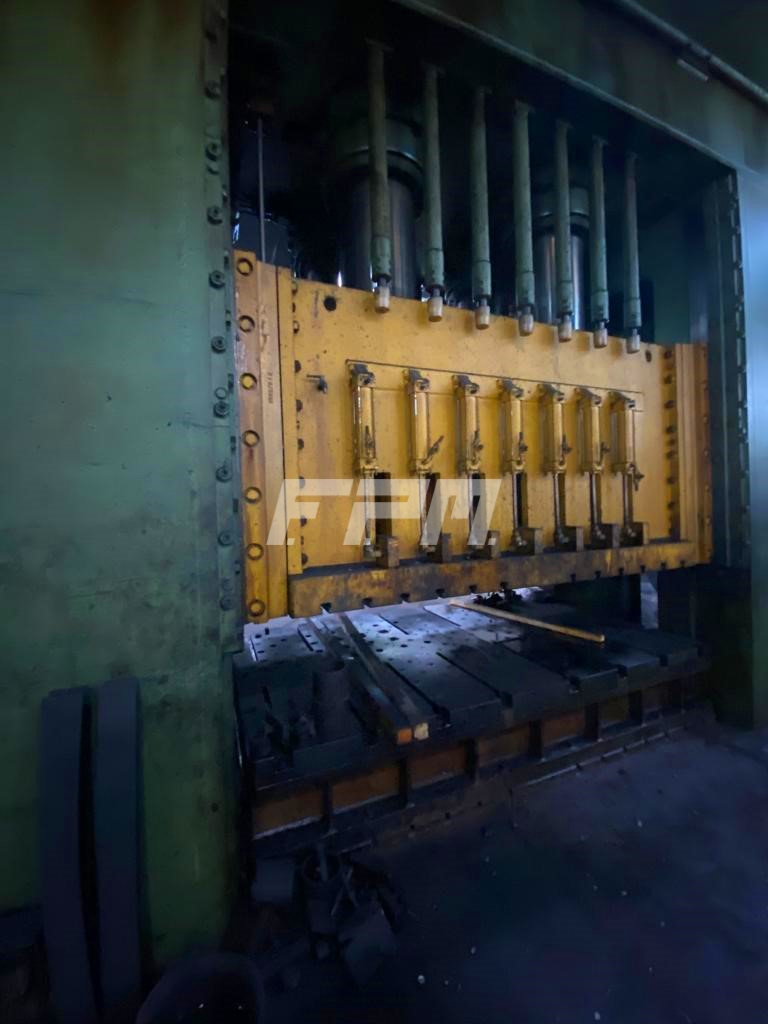

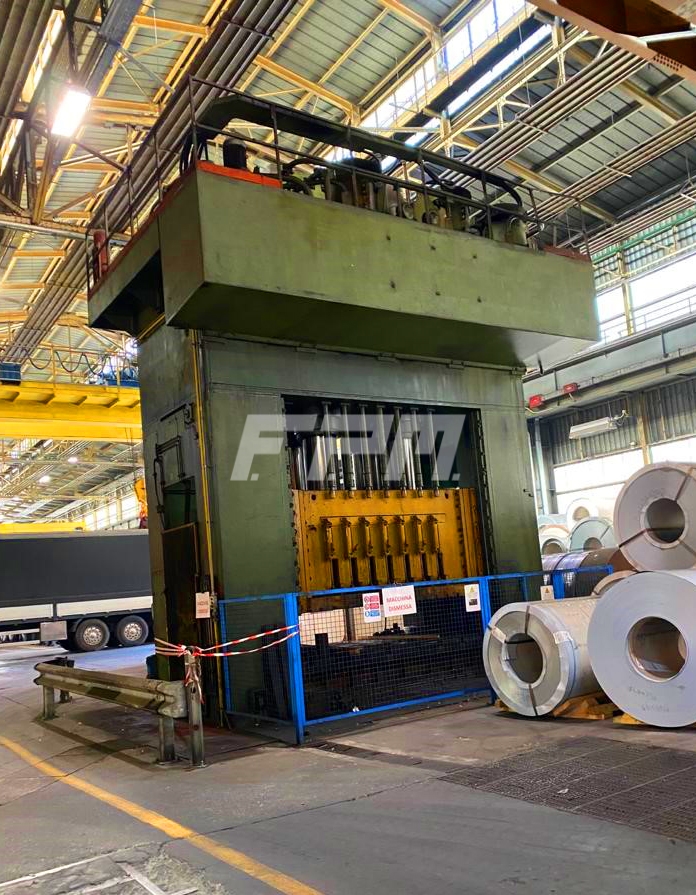

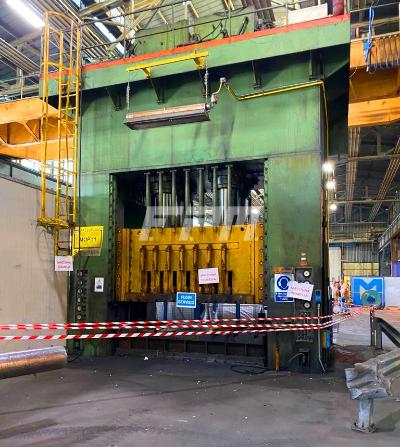

EMANUEL DEA 2000 / Ton 2000

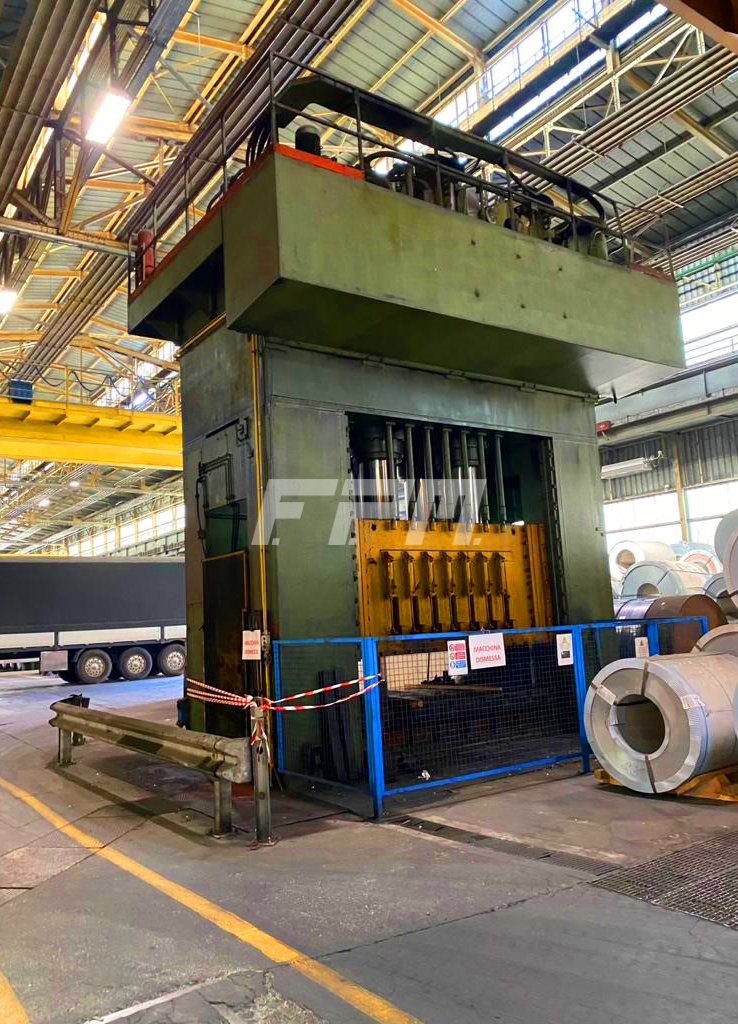

Hydraulische Doppelständerpresse
- Brand: Emanuel
- Type: Dea 2000/3200x2000-450
- Capacity: 2000 ton
- Double acting hydraulic press
- Blankholder reaction capacity: 640 ton
- Slide opening capacity: 70 ton
- Installed power: 330 kw
- Approach speed: 450 mm/s
- Speed at full power: 13 mm/s
- Half power speed: 23 mm/s
- Rising speed: 280 mm/s
- Come back blankholder’s speed: 100 mm/sec
- Max light between the tables: 2200 mm

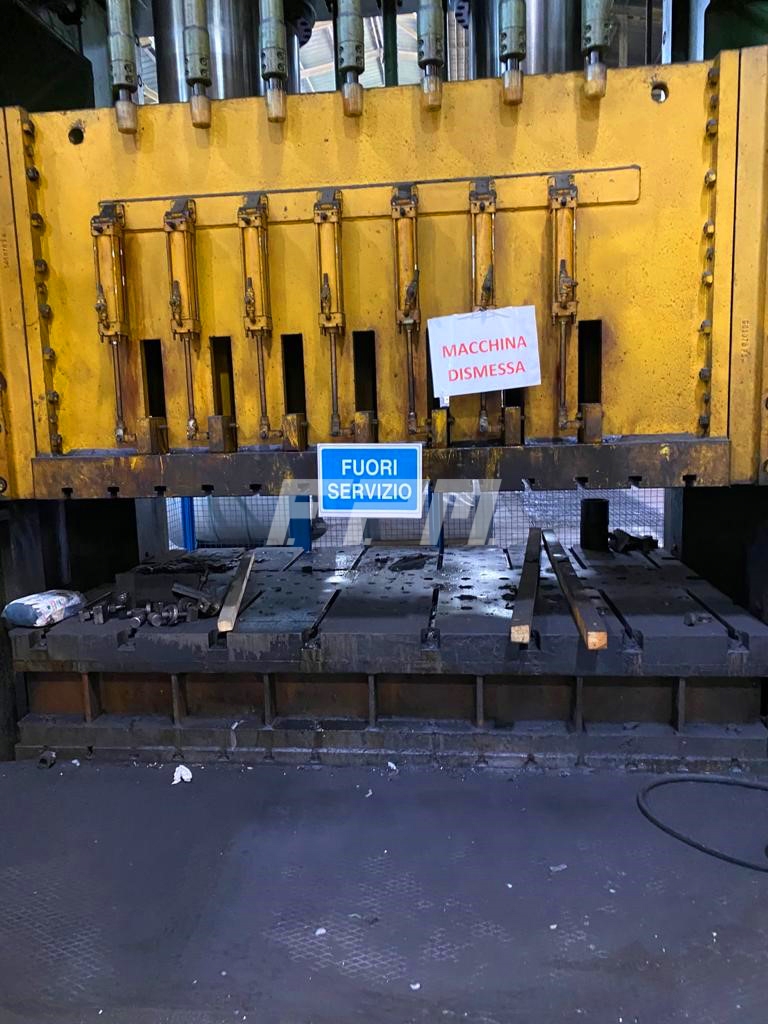

- Table: 3200 x 2000 mm
- Blankholder’s table: 2850 x 1650 mm
- Ram’s stroke: 1100 mm
- Blankholder’s table stroke: 500 mm
- Depth under the ground level: 2500 mm
- Table's height from the ground: 300 mm
- Height from the ground: 7500 mm
- Upper frontal width: 6000 mm
- Upper lateral width: 3800 mm
- Lateral opening: 800 mm
Technisches Datenblatt
| Code | PIDM010 |
|---|---|
| Hersteller | EMANUEL PRESSE |
| Status | Gebraucht |
| Bearbeitete Metalle | Blech |
| Nennleistung | 2.000 ton |
| Tischabmessungen | 3.200 x 2.000 mm |
| Stößelhub | 1100 mm |
| Abstand Stößel-Tisch | 2.200 mm |
