SAET 4 RNQ / 250 Kw

Induction billet-slug heating furnace for forging

SAET 4 RNQ / 250 Kw Induction billet-slug heating furnace for forging
SAET 4 RNQ / 250 Kw Induction billet-slug heating furnace for forging
SAET 4 RNQ / 250 Kw Induction billet-slug heating furnace for forging
SAET 4 RNQ / 250 Kw Induction billet-slug heating furnace for forging

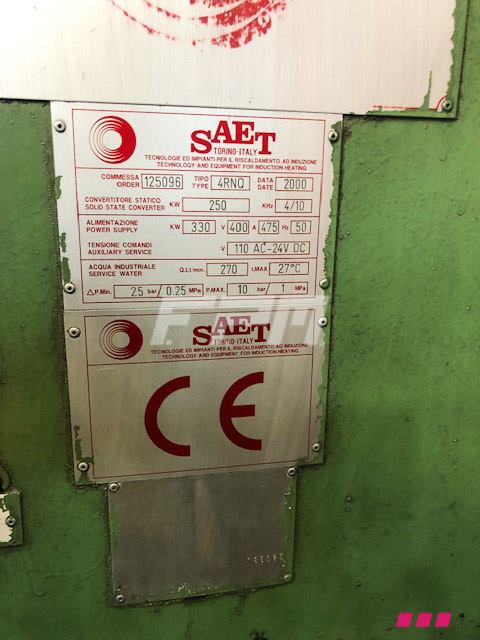

Description

  • Static converter
    • Kw 240
    • KHz 4/10
  • Power Supply
    • Kw/V 330/400
    • A 475
    • Hz 50
  • Command voltage
    • V 110 AC-24V DC
  • Industrial water
    • Q.lt/min 270
    • T.MAX 27°C

* INDICATIVE TECHNICAL DATA AND TO BE CHECKED

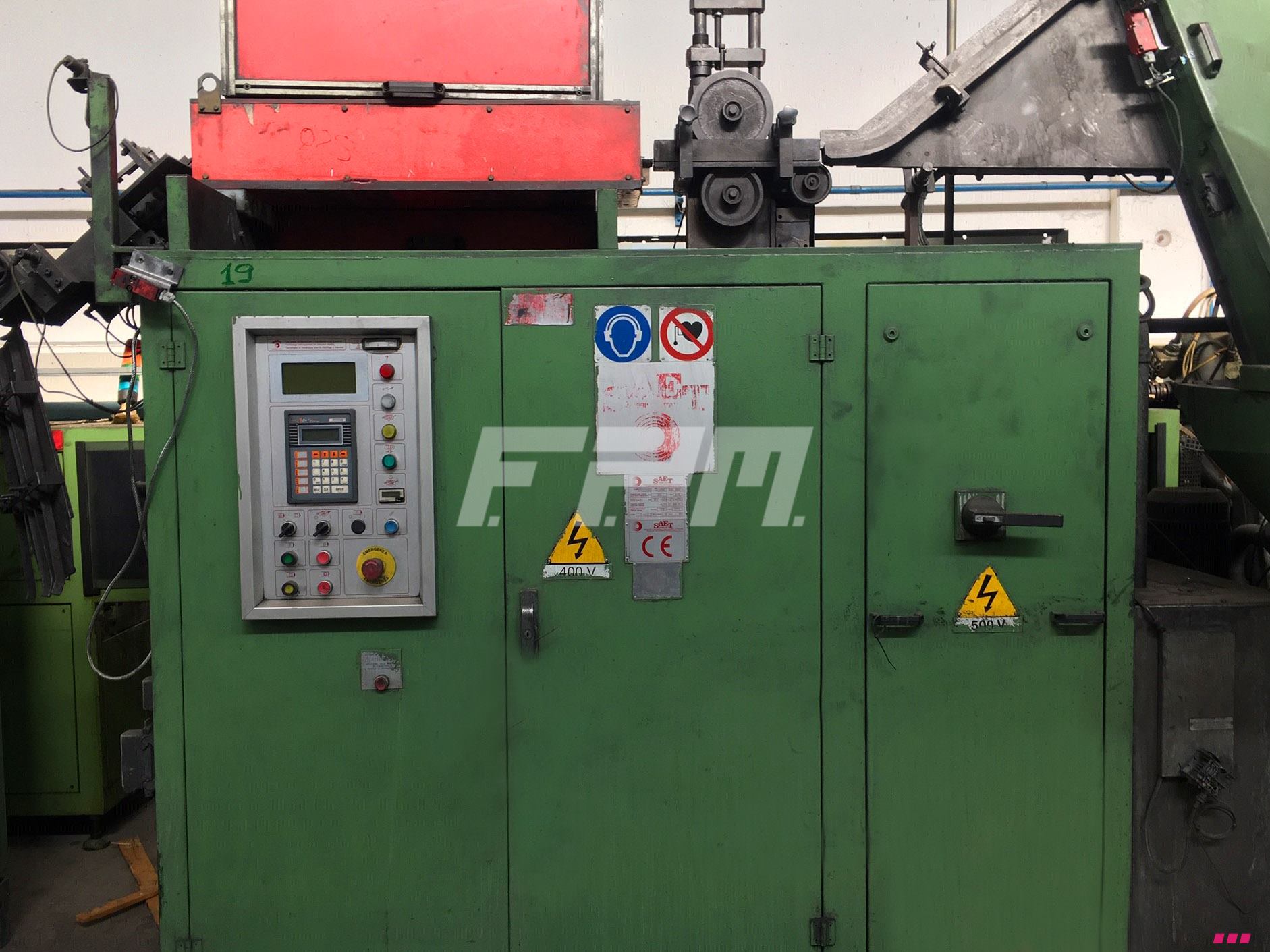

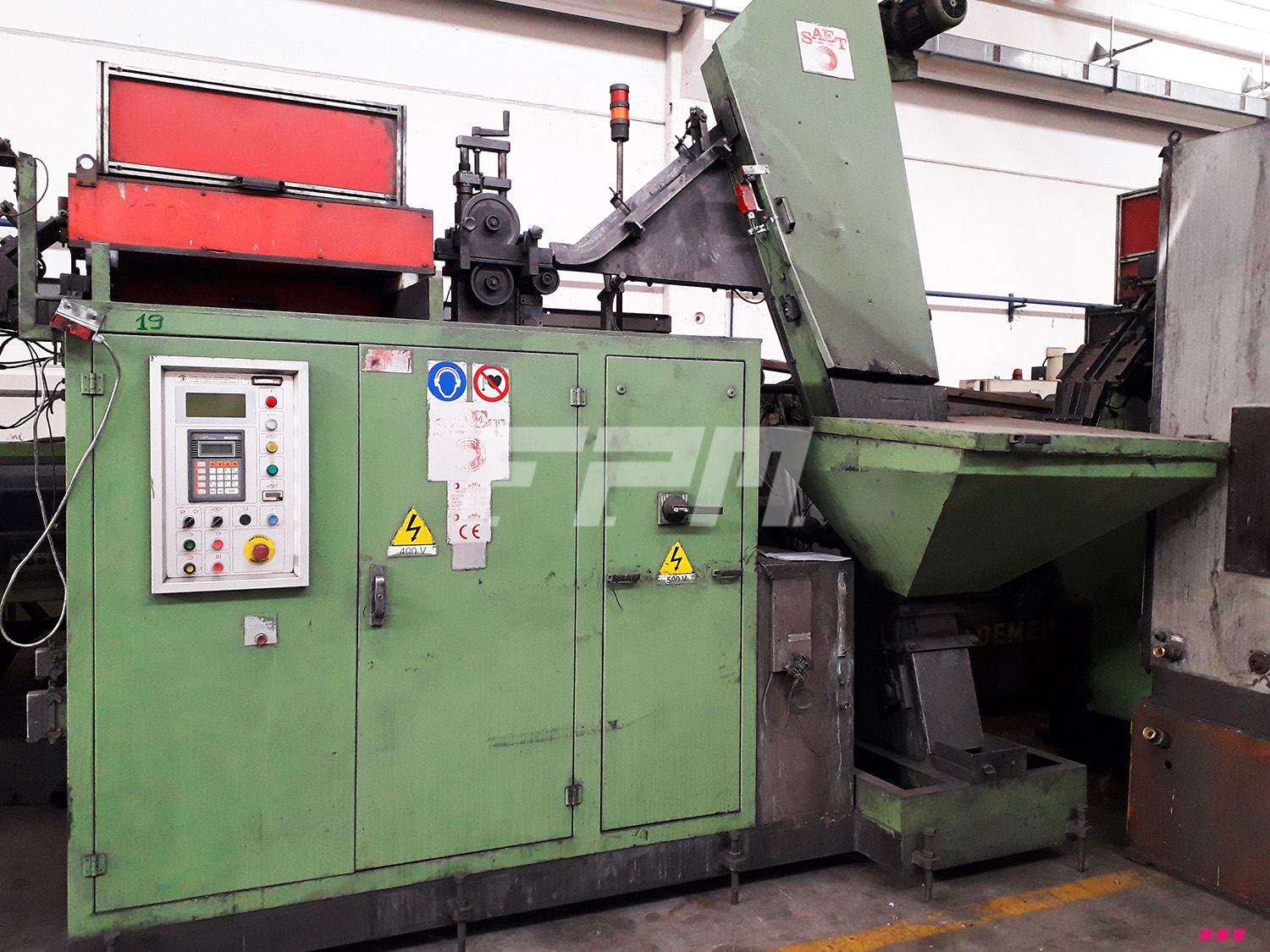

(PICTURE: THE FOURNACE IN THE CONDITIONS IT IS IN OUR WAREHOUSE)

Data sheet

Code FOIN016
Manufacturer SAET
Condition Used
Processed material brass steel aluminium
Furnace nominal power 250 Kw
